- Product Description

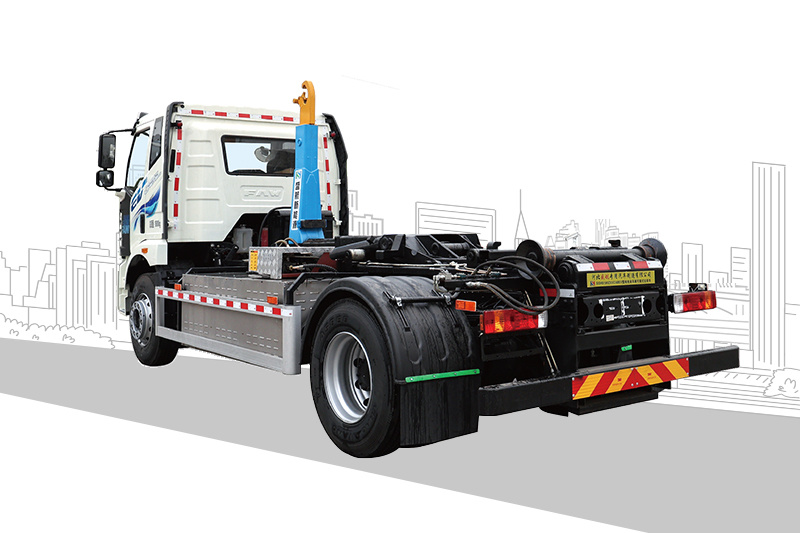

Pure Electric Carriage Detachable Garbage Truck
-
- Commodity name: Pure Electric Carriage Detachable Garbage Truck
The pull arm structural components are made of high-strength steel.
Product Features
● Superior performance: The pull arm structural components are made of high-strength steel. The key parts are made of high-strength precision castings, which have reliable performance and high safety
● High accessory configuration: Key hydraulic and electrical components such as hydraulic oil pump, main control valve, hydraulic lock, balance valve, proximity switch, etc. are internationally renowned brands with excellent quality and high reliability.
● The upper system is safe and reliable: the system adopts electro-hydraulic interlock logic control, and the pull arm is equipped with multiple layers of electro-hydraulic interlock logic control devices for high safety.
● Good universality and interchangeability, one vehicle can accommodate multiple garbage transfer stations, garbage bins can be interchangeable, effective question number garbage transfer efficiency, and reduce transportation costs.
● No secondary pollution during transportation, small footprint, saving on civil engineering investment, no need for additional lifting equipment
● The pull arm is made of high-strength and wear-resistant special steel, which is sturdy, durable, and has a long service life.
● The equipment has a light weight and a high lifting capacity.
● The operation method is convenient, with remote control and on-site operation.
Product Parameters
Population parameter Chassis Model CA1181P62L2BEV Quality parameters Maximum total mass 18000 kg Drive motor model TZ366XS50EA Curb weight 9000 kg Rated power/peak power of drive motor 90/180 kw Rated load capacity 8805 kg Rated voltage/rated capacity of power battery 540.96/456
V/AhInstallation parameters Unloading operation time ≤58 S Battery level 246.7
kwhUnloading cycle operation time ≤96 S Battery brand Ningde Era Self dumping angle 50 () Driving range (constant speed method) 300 km Height of hook center 1570 mm Maximum speed 90 km/h External import width 1070 mm Size parameter Dimensions (length x width x height) 7200×2530×3100 mm Horizontal movement distance of sliding arm 900 mm Wheelbase 4500 mm Rated lifting capacity 14 t Front track/rear track
1950/1878
mmInstall hydraulic system pressure 21 MPa Front suspension/rear suspension 1400/1300 mm Rear support method Rear roller support Approach/departure angle
18/23o
