SHS360-5 Straight Boom Truck Crane
-
- Commodity name: SHS360-5 Straight Boom Truck Crane
The large-span rear outrigger improves the stability of the vehicle and the lifting capacity of the medium and long arms;
Product Features
1. The height of the boom is increased, which greatly reduces the deflection of the boom at a large working radius and improves the load-carrying telescopic capacity;
2. The boom tube adopts 4 hexagonal welds and an upper and lower overlap structure, which has greater structural strength and a higher safety factor;
3. The large-span rear outrigger improves the stability of the vehicle and the lifting capacity of the medium and long arms;
4. The main valve adopts a manual proportional multi-way valve to achieve compound action and improve work efficiency;
5. Integrated control panel (engine start and stop, etc.), which is simpler and more reliable to operate;
6. The winch adopts a high-speed, dual-balance valve structure, which is more stable for low-speed operation;
7. The system adopts a dual-pump river to effectively improve work efficiency;
8. The working range and lifting capacity are better than similar products;
9. Radiators are standard for the entire series;

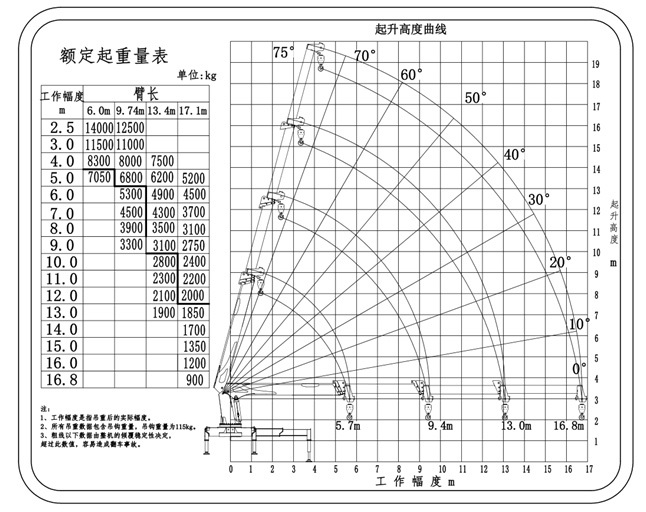

Main technical parameters and performance indicators
Maximum lifting weight (kg): 14000
Maximum lifting torque (kN.m): 360
Maximum working arm length (m): 19.7
Maximum lifting height (m): 21 (to the crane installation surface);
Boom elevation range (°): 0-75
Slewing angle (°): 360
Outrigger span (m): 7.7
Rated working flow (L/min): 63+40
Crane deadweight (kg): 5900

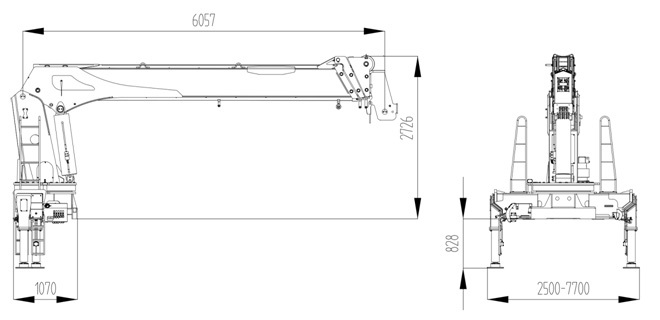

Dimensions
