- Product Description

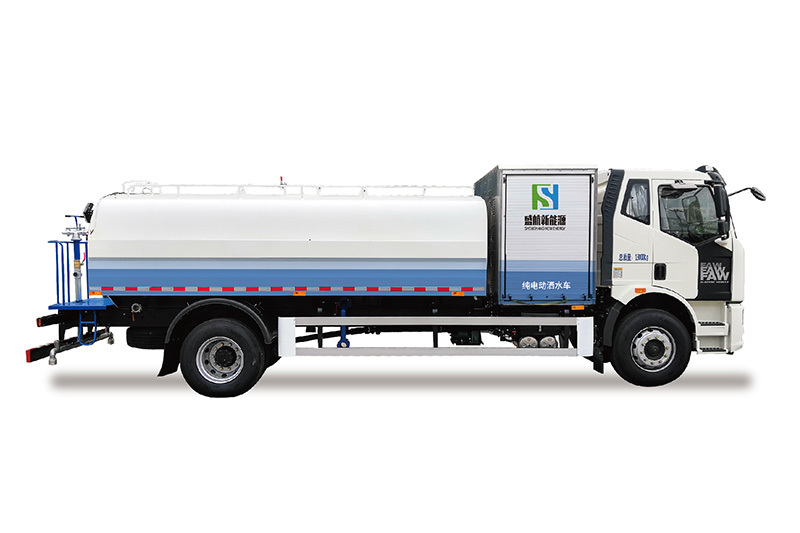

Pure Electric Sprinkler
-
- Commodity name: Pure Electric Sprinkler
The water tank is made of high-quality steel plate, and the product is treated with a special anti-corrosion process
●The water tank is made of high-quality steel plate, and the product is treated with a special anti-corrosion process, which greatly extends the service life of the vehicle.
●An anti-vortex device is installed at the water outlet at the bottom of the tank to prevent the formation of vortices when the water flows out and ensure the water flow rate.
●The tank is also equipped with a liquid level gauge and an overflow pipe. The liquid level gauge can conveniently observe the height of the liquid level in the tank. The overflow pipe is set to prevent the tank from being full and remind the operator to stop filling to prevent water waste.
●The pipeline mainly adopts the national standard No. 20 seamless welded carbon steel pipe. Compared with the galvanized pipe used in ordinary wine trucks on the market, it has the advantages of high strength, superior welding performance, corrosion resistance, and will not be frozen and cracked under low temperature conditions. In addition, this sprinkler truck is equipped with a filter in the pipeline, and the wave net is set in the pipeline before the pump to filter out the debris in the water flow in the tank to prevent the water pump from being blocked. A drain joint is set at the lowest point of the pipeline. In winter, it is convenient to drain the water in the pipeline to prevent the water in the pipeline from freezing and blocking the pipeline in winter.
●The operation panel is designed in the cab, which is safe and convenient, which not only improves work efficiency, but also reduces the fatigue of operators, and is more advanced and humane.
●The vehicle's power performance can meet the needs of various terrains, slopes, overpasses, squares, flower beds, construction sites and other environments.
Chassis parametersModelCA1181P62L2BEVManufacturerChina First Automobile Group Co., Ltd.Number of axles/wheelbase (mm)2/4500MotorModelTZ366XS50EAPeak power/speed (kW/ (r/min)180/4500ManufacturerSuzhou Green Control Transmission Technology Co., Ltd.Drive motor voltage (V)540.96Battery manufacturerCATLChassis power (KWH)246.7Overall parametersTotal mass (kg)18000Rated load (kg)8290Curb weight (kg)9580Actual volume of tank (m3)10.5
