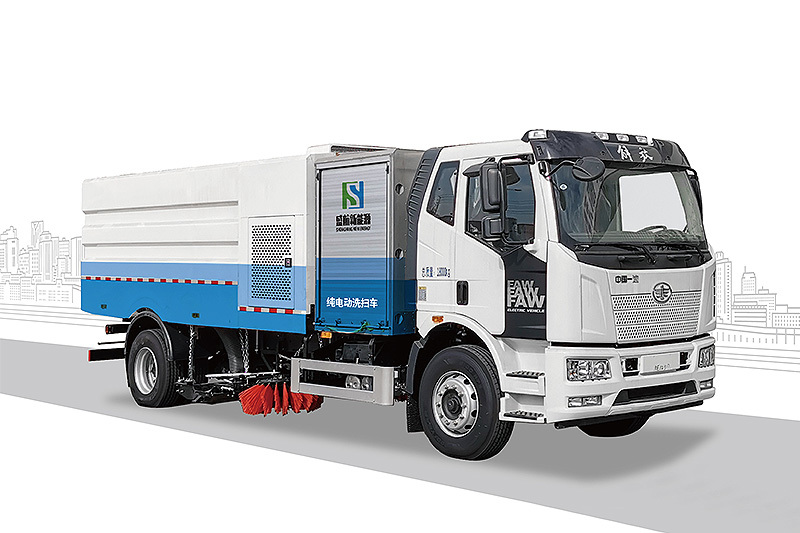

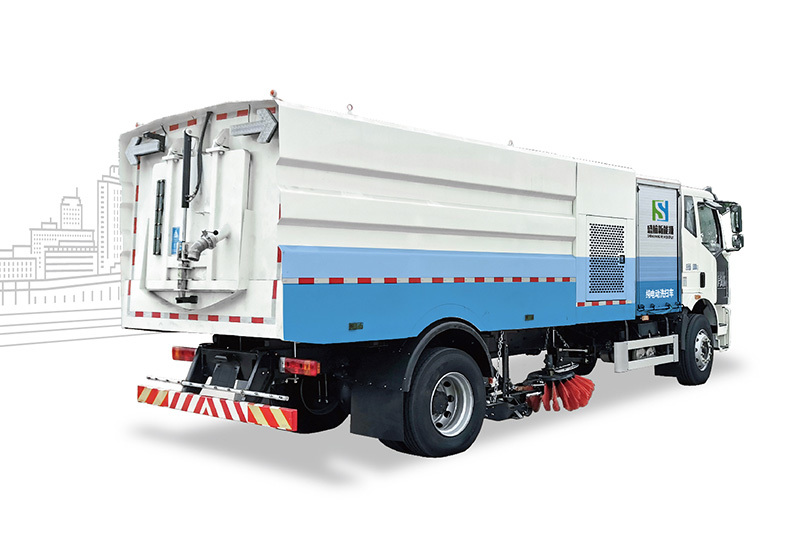

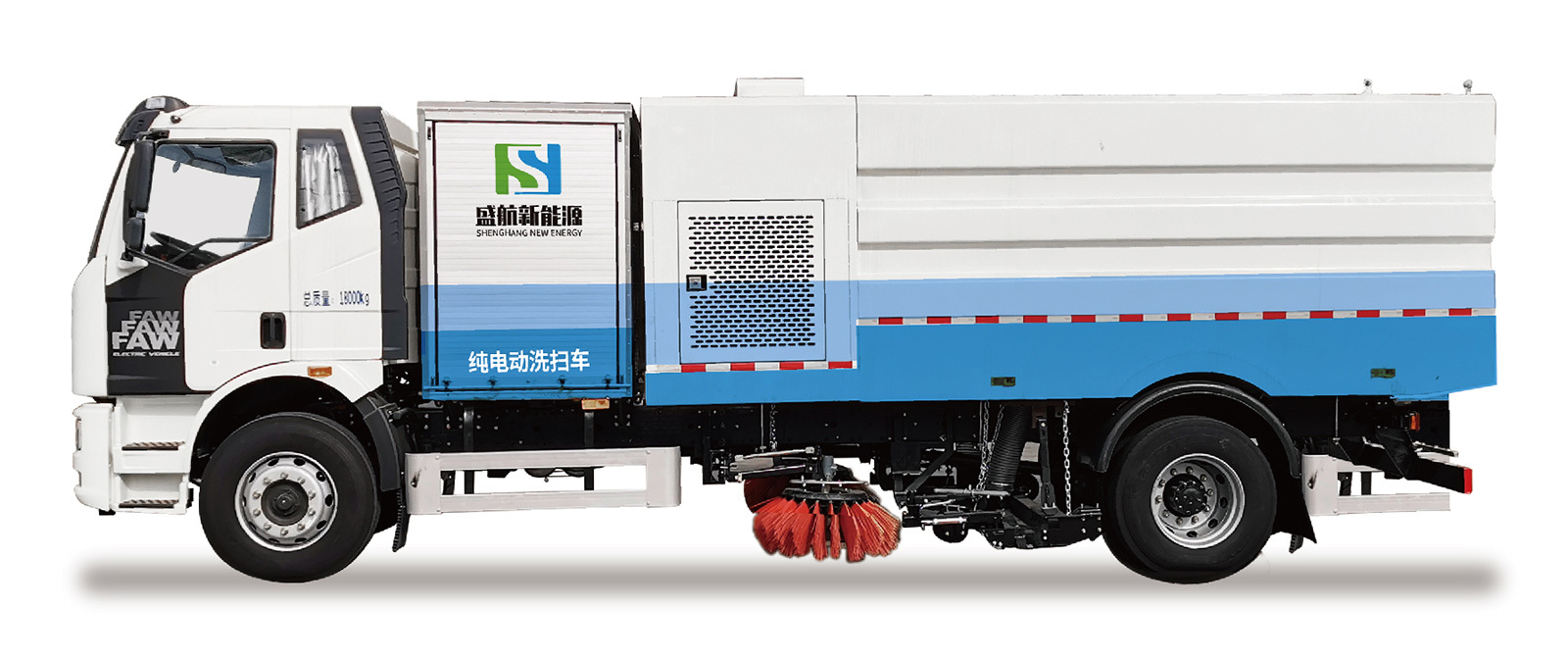

18 Tons Pure Electric Washing And Sweeping Truck
-
- Commodity name: 18 Tons Pure Electric Washing And Sweeping Truck
Intelligent control system based on CAN bus, LCD panel display, and humanized operation.
●It has multiple operating functions such as road cleaning, road sweeping, curbstone washing, spray dust reduction, etc., and has multiple operating modes.
●It adopts the layout of "center-mounted two vertical sweepers + center-mounted wide suction nozzle with built-in high-pressure water spray rod + center-mounted high-pressure side spray rod". The operating device is highly centralized, the sweeping and brushing consumption is low, the operation "splashes less, and the cleaning rate is high.
● The left and right high-pressure side spray bars and suction nozzles are arranged in a V shape, pneumatically operated, the water flow impact force is large, and the sewage is efficiently collected. The spray bar mechanism has anti-collision and automatic reset functions.
● Intelligent control system based on CAN bus, LCD panel display, and humanized operation. After selecting the operation mode, the start and stop of each operating mechanism are automatically controlled by the program.
● The auxiliary motor drives the high-pressure water pump, fan and working device, and the high-pressure water pump transmission is controlled separately by a pneumatic clutch.
● It has an advanced high-pressure water circuit control system. When the high-pressure water pump starts and the working water valve is switched, the water pump can automatically unload and effectively protect the water pump.
● A low water level sensor alarm system is installed in the clean water tank, which automatically alarms when the water level is low to prevent the water pump from being damaged due to lack of water.
Chassis parametersChassis modelCA1180P62L3BEVDrive motor modelTZ366XS50EADrive motor rated power/peak power (kw)90/180Power battery rated voltage/rated capacity (V/Ah)618.24/456Battery power (kwh)281.91BatteryCATLSizeOverall dimensions (length × width × height) (mm)8940×2545×3220Wheelbase (mm)5300Mass parametersCurb weight (kg)12800Maximum total mass (kg)18000Rated load (kg)50,705,005Water tank capacity (m²）7.3Garbage bin capacity (m")7.2
